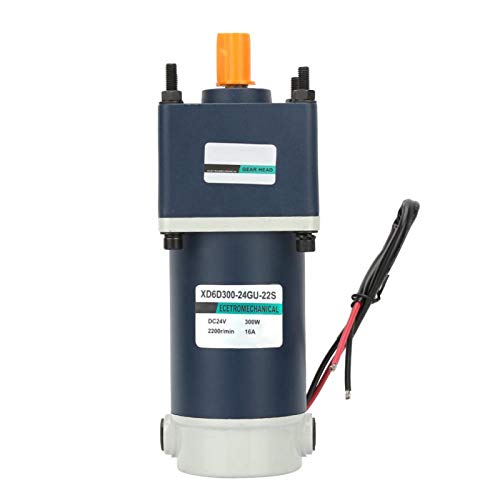

LANTRO JS 24V 300W Permanent Magnet DC Motor - High Torque 15mm Shaft Metal Gear Motor, Reversible Electric Gear Motor (20 RPM) for Robotics, CNC Machines, and Industrial Automation

Features: 1. The product consists of two parts: DC motor and gear reducer. The rated voltage of the motor is 24V, the rated power is 300W, the torsion is 7.96kg.Cm, the rated speed is 2200 RPM, the gearbox has different reduction ratios, and the appropriate model can be selected according to the required output speed. 2. The motor output shaft is a helical gear with a large contact area, good flexibility and better stability. 3. The output shaft of the gearbox is the shaft with the key slot 4. Metal gear, good rigidity and large torsion 5. The surface of the paint layer is frosted, not easy to scratch and paint off, it is protective Specification: Model: XD6D300 Voltage: DC 24V Power: 300W Insulation Class: Class B Motor Size: Approx. 16.7 * 10.4 * 10.4cm / 6.6 * 4.1 * 4.1in Gear Box Size: Approx. 10.4 * 10.4 * 12.4cm / 4.1 * 4.1 * 4.9in Gear Box Shaft Size: Diameter: Approx. 15mm / 0.6in Length: Approx. 42mm / 1.7in Optional Style: 750RPM, 500RPM, 300RPM, 200RPM, 150RPM, 100RPM, 70RPM, 50RPM, 30RPM, 20RPM, 15RPM, 10RPM Package List: 1 * DC Geared Motor

DURABILITY: The permanent magnet dc motor adopts metal gear, which can avoid tooth breaking, has longer serving life and better wear-resisting; and the surface of the paint layer is frosted, not easy to scratch and paint off

SPECIFICATION: Model: XD6D300-24GU-22S; Rated power: 30W; Rated voltage: 24VDC; Length: Approx. 42mm / 1.7in; Insulation Class: Class B; Motor Size: Approx. 16.7 * 10.4 * 10.4cm / 6.6 * 4.1 * 4.1in

STABILITY: The motor output shaft with the key slot is a helical gear with a large contact area, the diameter is 15mm, featured good flexibility and excellent stability, offers smooth operation and stable performance

APPLICATION: Mainly used in instrument, Automation, Gluing machine, stage lamps and Advertising display equipment, curtain automatic control, automatic voltage regulator, Electric image, etc

CW/CCW CONTROL: DC Permanent Magnet Synchronous Motor supports clockwise and counterclockwise rotation, and it can achieve speed adjustment function without external direct current governor
