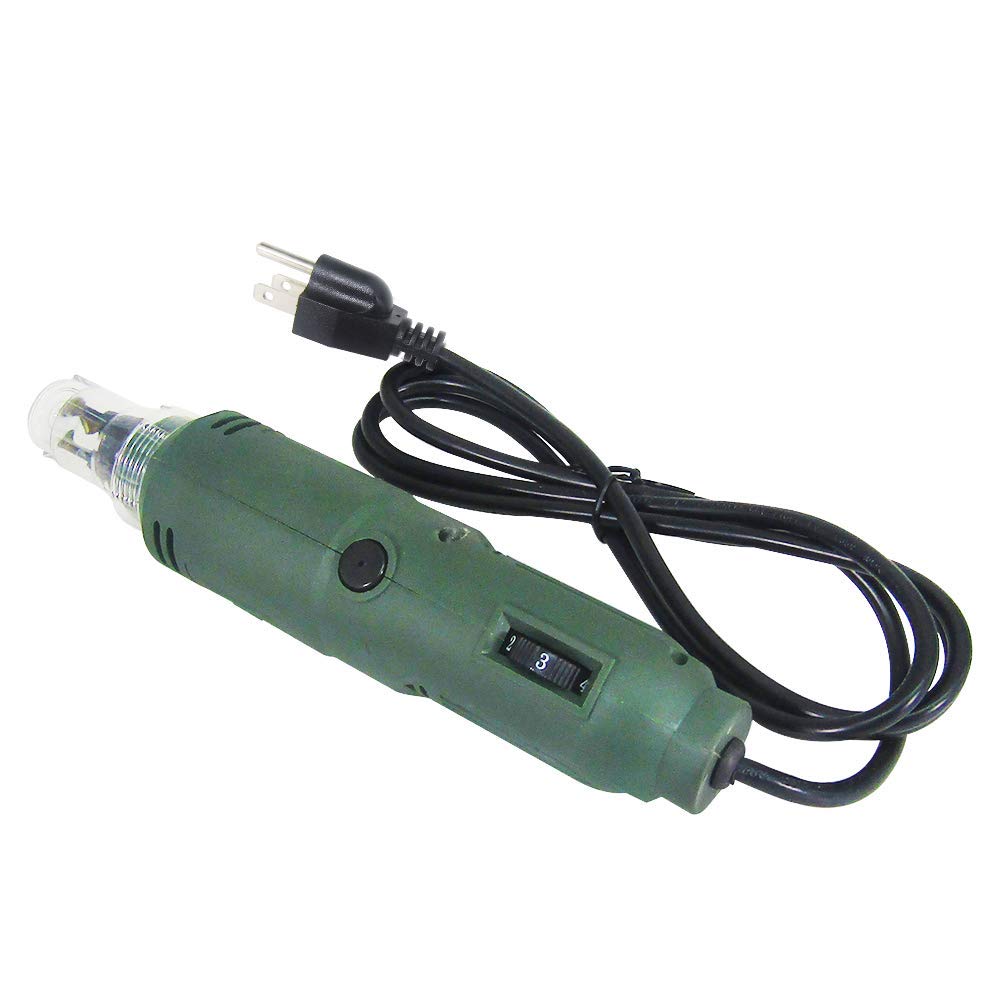

MXBAOHENG Electric Wire Stripper - Handheld Magnet Wire Stripping Machine for 0.3-3.0mm Coated Wires, Paint Scraper & Cutter Tool with 110V US Plug (Ideal for Electronics Repair, DIY Projects & Electrical Work)

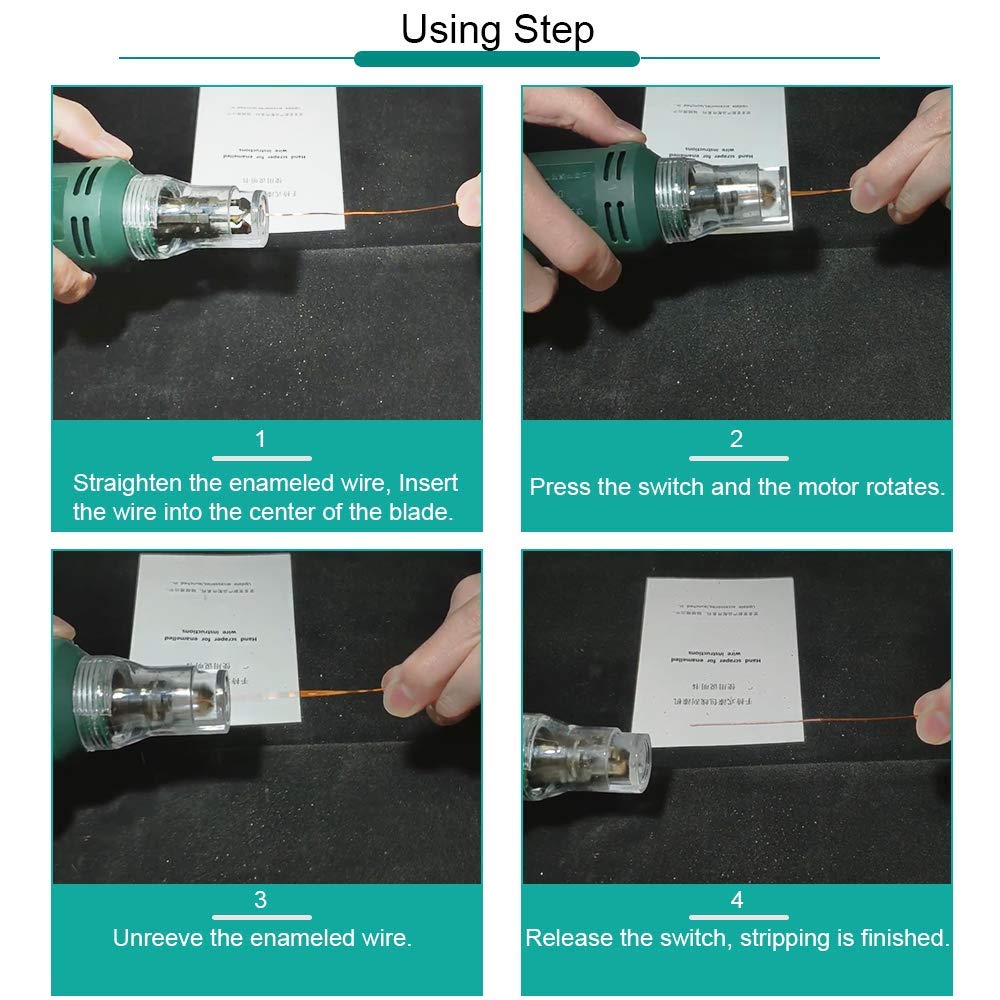

Model: DF-8 Voltage: 110V/220V OPTIONAL Speed: 0 ~ 12000 r / min Power: 75W Scraping wire diameter: 0.3-3.00 mm Scraping wire length: 2-50mm Size: 250*55*55mm Weight: 0.75kg NOTE 1. When the enameled wires are of different specifications, the speed control knob at the back end can be adjusted, (1 gear is the slowest, 6 gear is the fastest). Adjust to the "slow" direction for the wire of smaller wire diameter, and adjust to the "fast" direction for the wire of larger wire diameter. When paint film cannot be completely scraped off, increase the speed until it is scraped off. If the paint wire is cut by a scraper during speed regulation, the speed should be reduced until it meets the requirements. According to the above method, select the most suitable speed as the working speed of the corresponding wire diameter. 2. When scraping to the end of the paint wire, please don't separate the wire from the blade immediately. Wait until the knife stops rotating to avoid damage to the blade due to the sudden separation of the paint wire from the blade during rotation. 3. Before scraping the paint, the paint wire must be slightly straightened by hand to avoid misalignment of the paint wire to the center of the knife edge. 4. After a long time of use, if the power supply is not available, the safety cover can be unscrewed to remove the scraped paint film powder.

▶[APPLICATION] It can quickly scrape off the insulating paint film on the surface of various enameled wires without damaging the wire, and improve the quality of wire welding.

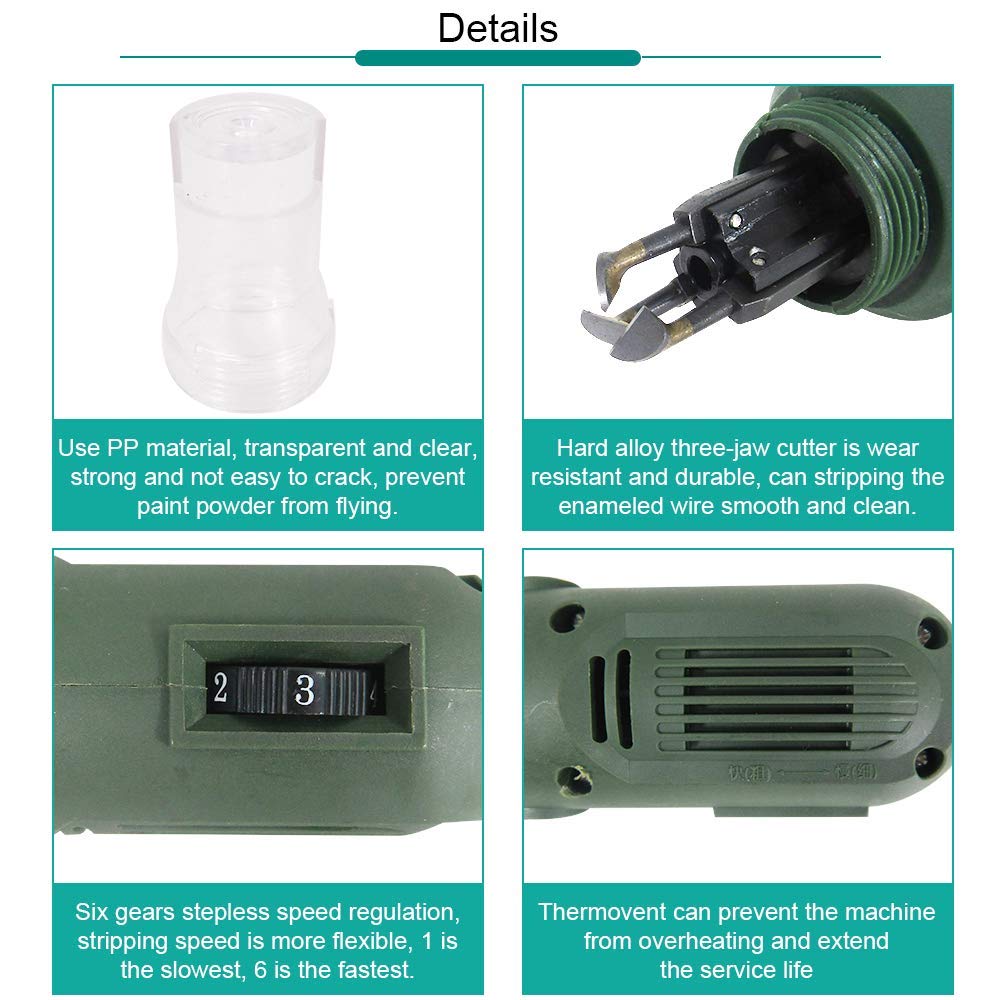

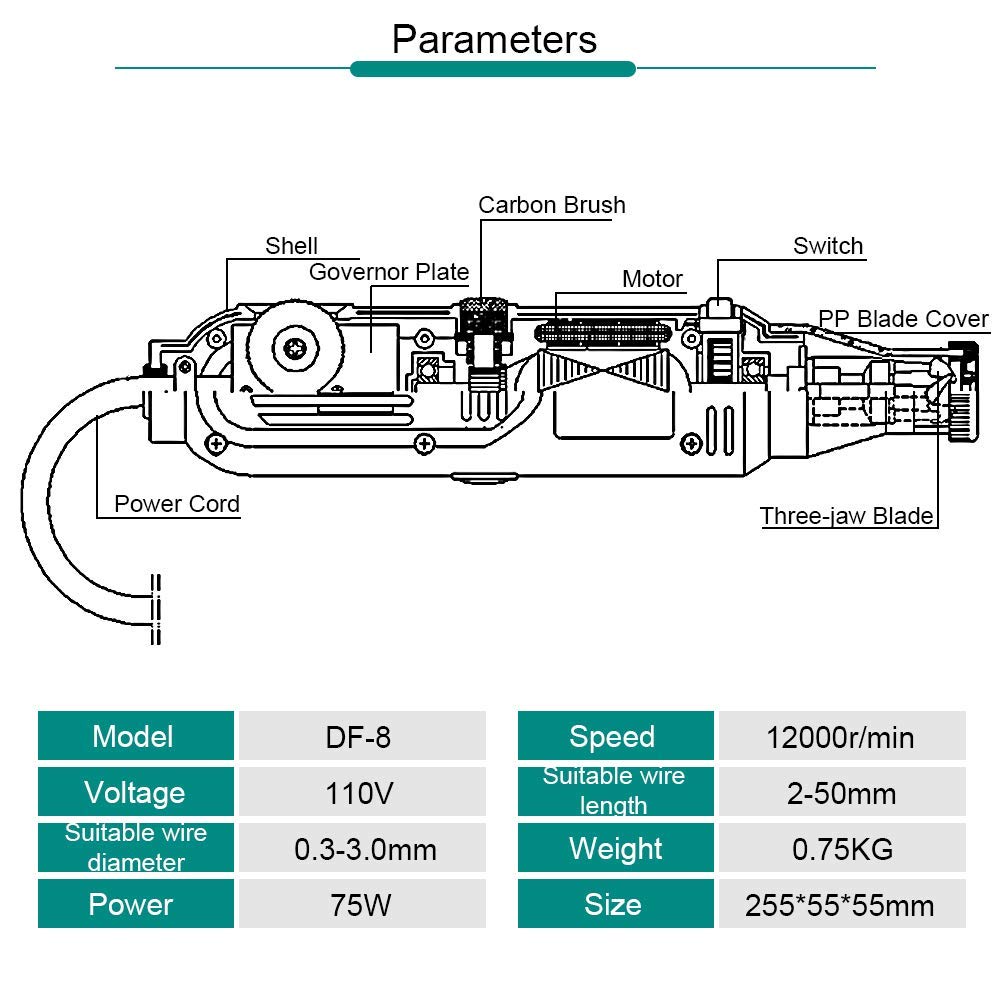

▶[STRUCTURE] It is composed of an electronic stepless speed regulator, a single-phase series motor and a three-jaw cutter head. Use light and durable micro-point switch and spinning carbon brush. Fast paint scraping speed, high efficiency, simple operation, stable quality, low failure rate, convenient to carry and store.

▶[SPEED] Six-speed stepless speed regulation, 1 is the slowest, 6 is the fastest, suitable for various coated wire diameters in the range of 0.3-3.0mm. You can adjust the stripping speed according to your own habits.

▶[NOTE] When scraping to the end of the paint wire, please don't separate the wire from the blade immediately. Wait until the knife stops rotating to avoid damage to the blade due to the sudden separation of the paint wire from the blade during rotation.
