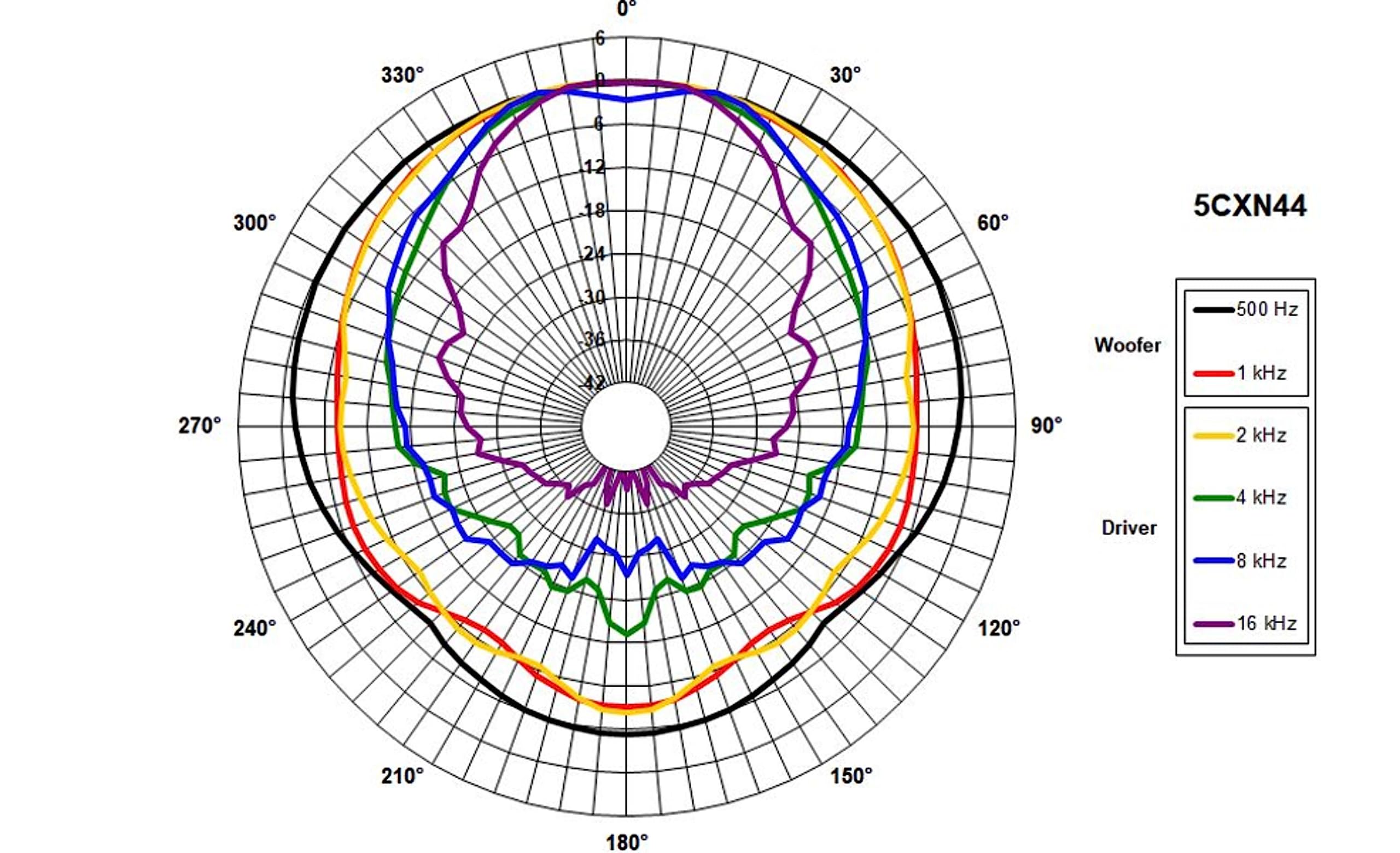

HIGHLIGHTS | 300 W continuous program power capacity | 80° nominal coverage | 70 - 18000 Hz response | 86.5 dB sensitivity | Aluminium demodulating ring for very low distortion"
SPECIFICATIONS | Nominal Diameter 127 mm (5.0 in) | Nominal Impedance 8 Ω | Minimum Impedance LF 6.1 Ω | Minimum Impedance HF 7.5 Ω | Frequency Range 70 - 18000 Hz | Dispersion Angle1 80 ° | Woofer Cone Treatment WP Waterproof Front Side | Magnet Material Neodymium Ring | "
SPECIFICATIONS LF UNIT | LF Sensitivity2 86.5 dB | LF Nominal Power Handling3 150 W | LF Continuous Power Handling4 300 W | LF Voice Coil Diameter 44 mm (1.7 in) | LF Winding Material Copper | LF Flux Density 0.95 T | Former Material Kapton | Winding Depth 14.0 mm (0.55 in) | Magnetic Gap Depth 6.0 mm (0.24 in) | "
SPECIFICATIONS HF UNIT | HF Sensitivity5 101.0 dB | HF Nominal Power Handling6 25 W | HF Continuous Power Handling7 50 W | HF Voice Coil Diameter 36 mm (1.4 in) | HF Winding Material Aluminum | HF Flux Density 1.54 T | Diaphragm Material HT Polymer | Recommended Crossover8 2.0 kHz | Inductance 0.14 mH | "
MOUNTING AND SHIPPING INFO | Overall Diameter 155 mm (6.1 in) | Bolt Circle Diameter 142 mm (5.6 in) | Baffle Cutout Diameter 122 mm (4.8 in) | Depth 96 mm (3.78 in) | Flange and Gasket Thickness 10 mm (0.39 in) | Net Weight 1.2 kg (2.65 lb) | Shipping Units 1 | Shipping Weight 1.65 kg (3.64 lb) | Shipping Box 255x255x150 mm (10.04x10.04x5.91 in) | "
