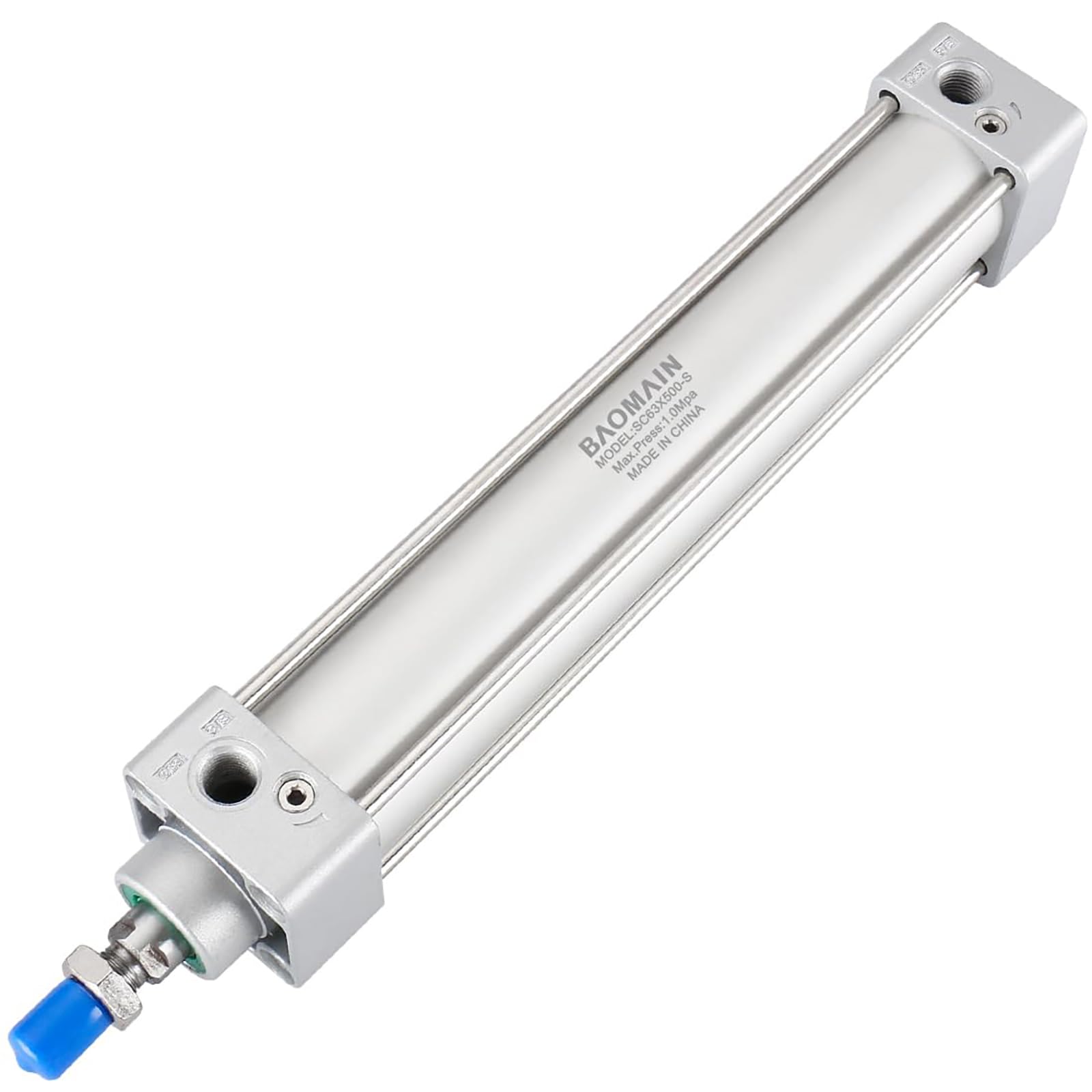

Baomain SC63 x 500-S PT 3/8 Pneumatic Air Cylinder - 2.5 Inch Bore, 20 Inch Stroke, Dual Action with Magnet - Ideal for Industrial Automation, CNC Machinery, and Pneumatic Systems

Features: 63mm bore and 500mm stroke, double action and single rod,Adjustable cushion on both cylinder end covers to make sure the cylinder works very smoothly, safely and with low noise.With self-lubricating bearing, the piston rod is lubrication free.It is widely applied to the automatic equipment in light industry, chemical industry, textile industry, electronic and machinery industry.If you need accessories, please search ASIN: B077N6ZKT2; B077MWTQHS; B077N85BQG; B077N5V3L9 to find.

Port size PT3/8

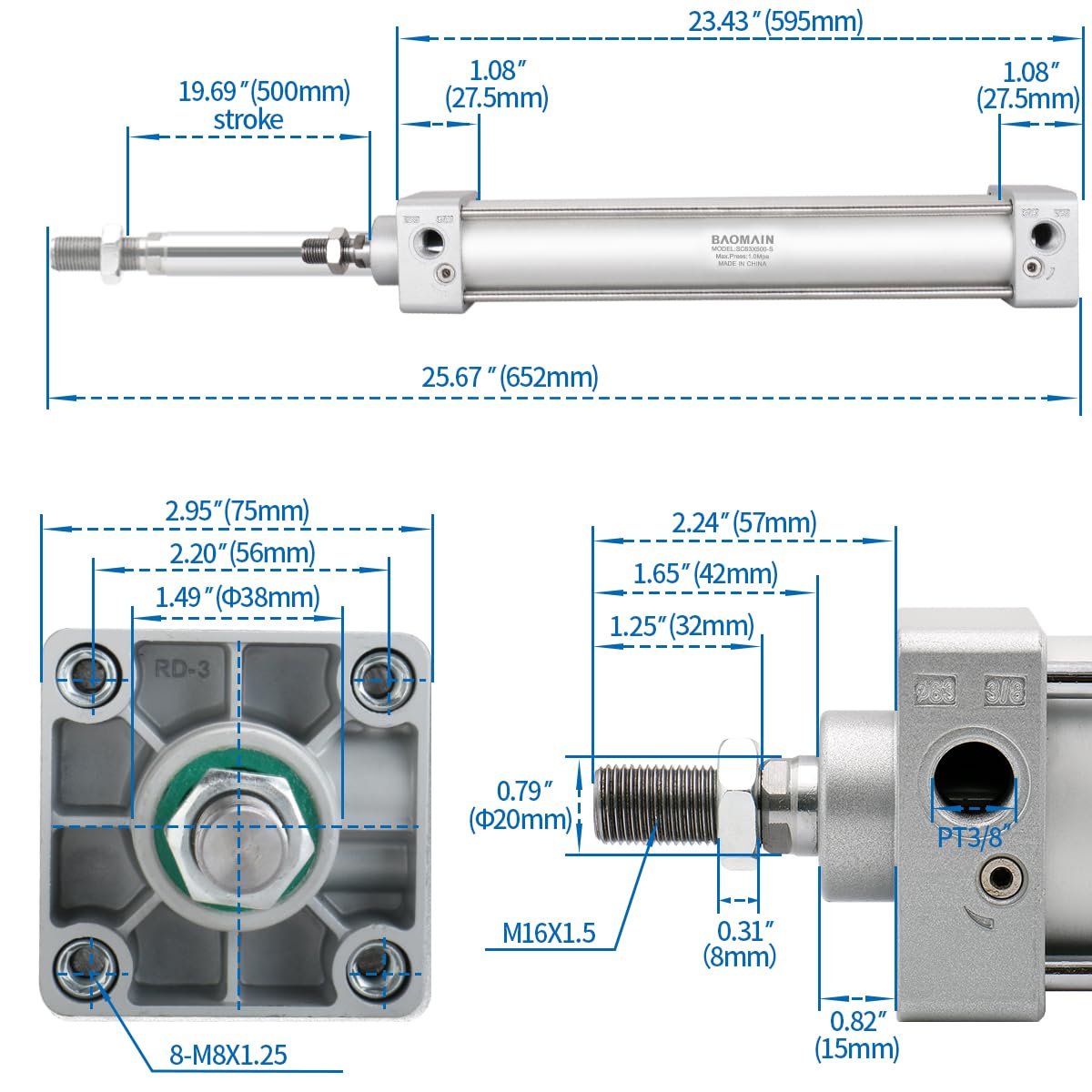

Bore 2 1/2 inch, Stroke 20 inch

Max. theoretical force 280Kgf; Max Pressure 1.0 MPa

Action Type Double Acting; Rod Type Single Rod

Piston port size M16X1.5;Net Weight3616g.
