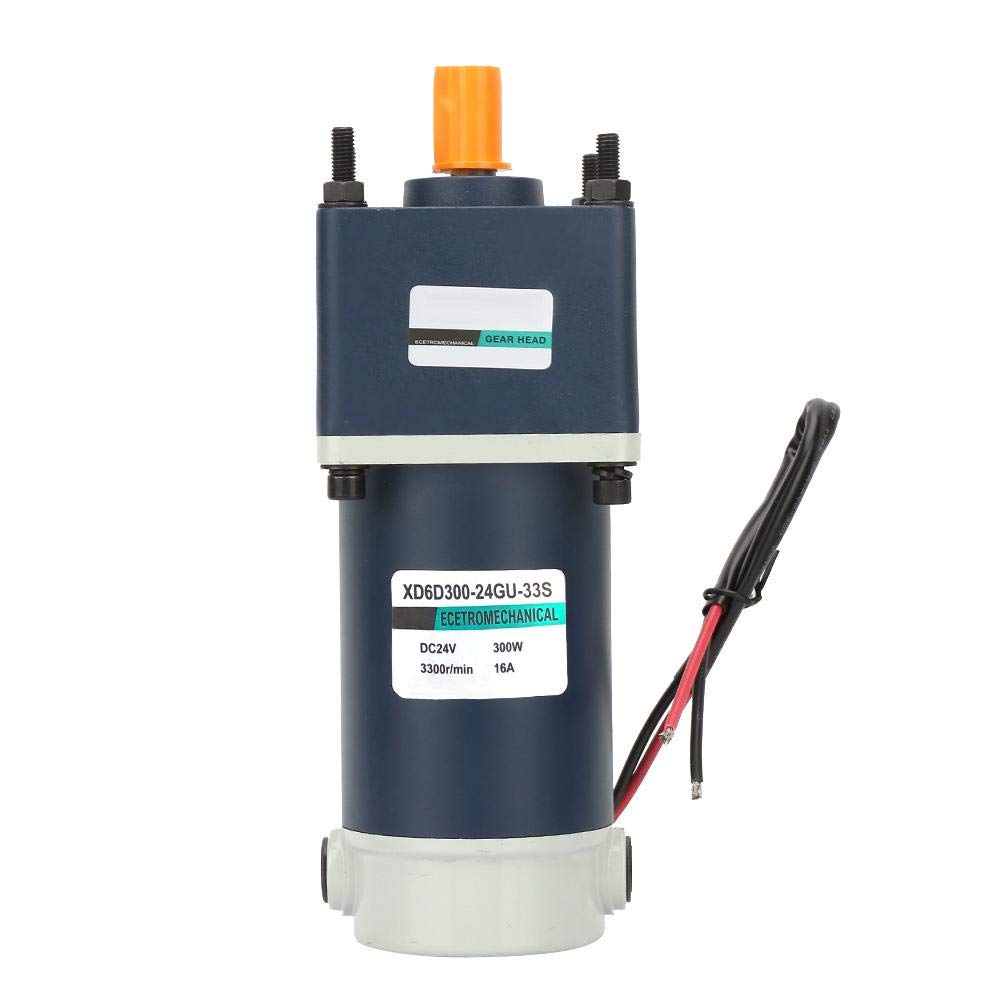

Feature: 1. The product consists of two parts: DC motor and gear reducer. The rated voltage of the motor is 24V, the rated power is 300W, the torsion is 7.96kg.Cm, the rated speed is 3300 RPM, the gearbox has different reduction ratios, and the appropriate model can be selected according to the required output speed. 2. The motor output shaft is a helical gear which has a large contact area, and it has good flexibility and stable performance. 3. The output shaft of the gearbox is the shaft with the key slot 4. This product has metal gear with good rigidity and large torsion 5. The surface of the paint layer is frosted, not easy to scratch Specification: Condition: 100% Brand New Model: XD6D300 Voltage: DC 24V Power: 300W Motor(without gear box): Model Voltage Power No-load parameter Load parameters Speed Current Speed torsion Current XD6D300-24GU-33S 24V 300W 3300RPM 2.7A 2680RPM 7.96KG.CM 16A Insulation Class: Class B Motor Size: Approx. 16.7 x 10.4 x 10.4cm / 6.6 x 4.1 x 4.1in Gear Box Size: Approx. 10.4 x 10.4 x 12.4cm / 4.1 x 4.1 x 4.9in Gear Box Shaft Size: Diameter: Approx. 15mm / 0.6in Length: Approx. 42mm / 1.7in Optional Style: 1000RPM, 700RPM, 500RPM, 300RPM, 250RPM, 200RPM, 150RPM, 100RPM, 70RPM, 50RPM, 40RPM, 30RPM, 20RPM, 15RPM Package List: 1 x DC Geared Motor
